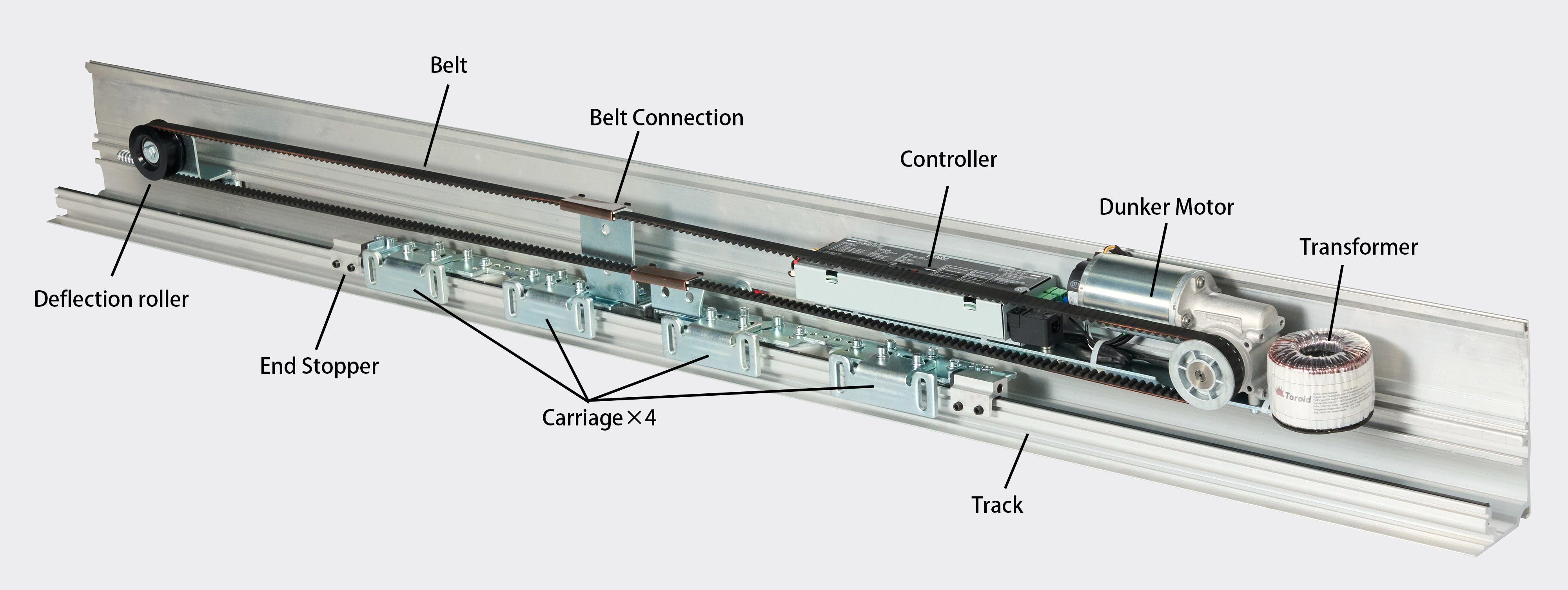

 | Dunkermotoren GR 63*55 ● DIN 18650 - 1 million test cycles at 4 000 cycles per day ● EB16005 |  | ES200e controller function programs ● Off ● Automatic ● Permanent open ● Partial open ● Exit only ● Night-bank switch |
| High molecular polymer material, resistant to fatigue and wear |  | Noiseless Track with rubber strips |  |
ES200e operator and DORMA ES200 easy is developed based on the same components. With the capacity of dunker motor, ES200e can readily cope with sliding door weights of up to 2 x 100 kg per door panel weight
| Door parameters | ES 200 Easy |
Single-panel sliding door | 800 - 3000 mm 1 × 120 kg |
| Double-panel sliding door - Transit width LW - Door panel weight, max. | 800 - 3000 mm 2 × 100 kg |
| *Other dimensions on request | |
| Technical Specification | |
| Height | 100 and 150 mm |
| Depth | 180 mm |
| Opening and closing force max. 150 N | ● |
| Opening speed (incremental setting) | 10 - 50 cm/s |
| Closing speed (incremental setting) | 10 - 40 cm/s |
| Hold-open time | 0,5 - 30 s |
| Mains voltage, frequency | 230 V, 50/60 Hz |
| Power consumption | 50 W |
| International protection | IP 20 |
| Admissible temperature | -20 - + 60℃ |
| Admissible humidity (relative) | max. 93 % (non- condensing) |
The modular control system comprises of the basic module (BM) and the function module (FM)
| Basic module (BM) | ES 200 Easy | |
| Microprocessor controller | ● | |
| Functional programs - Off -Automatic -Permanent open -Partial open -Exit only -Night-bank switch | ● ● ● ● ● ● | |
| Emergency off | ● | |
| Self-learning | ● | |
| Automatic reversing | ● | |
| Connection for bistable electro-mechanical locking | ● | |
| Connection for light barriers (max.2 pairs) | ● | |
| Setting of basic parameters via integrated display and push-buttons | ● | |
| Emergency opening or closing(with use of battery pack) | ● | |
| 24V output for external consumption | ● | |
| Read-out error store with error codes | ● | |
| Additional equipment | |
| Electro-mechanical locking (bistable) | ○ |
| Manual unlocking for electro-mechanical locking | ○ |
| Light barriers | ○ |
| Battery pack (emergency opening, emergency closing) | ○ |
| Emergency power module USV | ○ |
| Module for coupling to ElB buildings control systems | ○ |
| ● standard ○ optional | ○ |
